Siemens 828D 2-Axis Knee Mill CNC Retrofit Kit (No Mechanical)

MTP #:
SEIS-828DKNEE2
$16,945.00 $15,249.00
(You save $1,696.00)
Shipping:
Calculated at checkout
Quantity:
or View Details
Request Quote

Need Some Advice?Speak to one of our gearheads

Product Description

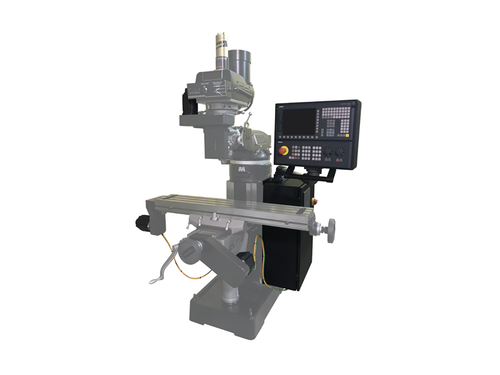

This Pre-Built Siemens 828D CNC Kit is for a 2-axes knee mill machine. Kit components include: Siemens CNC Display/Control (241.3PPU), Machine Control Panel (483MCP),(2) Siemens Drives & Servo Motors with cable sets, enclosures, pendant arm, control components, (1) power supply, control transformer, output and safety relays, lockable rotary disconnect, resettable breakers for circuit protection, and multi-cable thru gland. Servo motors are rated for 6Nm. MTP Starter Prints, PLC Code, and MTP Commissioning Manual also come with this kit.

Our CNC Kits are some of the easiest to install and configure in the industry. Mount the unit, set a few parameters, and you are ready to go. Setup time typically takes 2-3 hours after hardware is mounted on the machine. PLC code is pre-written and will work for most basic milling machine applications. We have also included a specific User POU, where additional PLC code can be written for machine specific applications, like a tool changer. If you are not proficient in ladder, or simply don't have the time to commission the system for your specific application, ask about our Integration Services. We are happy to setup the machine ourselves or recommend one of our trusted Integration Partners.

For more information download the Siemens 828D CNC System Brochure

Included in Kit

     • Siemens 828 PPU with MCP

     • Pre-Built Electric Enclosure

     • High-End Pendant Arm with Operator Station

     • S120 Drives & 1FK7 Motors on Digital Drive Bus

     • (2) 6Nm Servo Motors

     • 5 Meter Power and Feedback Cables

     • MTP Source Code (tool changer optional)

     • 72in/48out IO Board

Feature Overview

     • ShopMill Conversational Programming

     • Absolute Encoders - NO Homing Required

     • DXF Reader (DXF PC Software Available Free As Well)

     • 3D Part Simulation

     • Dedicated Jog Keys (X, Y, Z)

     • Software Travel Limits

     • 2 Axis Operation

     • Tool Change Hotkey

     • Gear Change Monitoring

     • G54 – G59 Work Offset Activation Keys

     • Feedrate/Spindle Speed Override



Specifications

Number of Axes 2 Interpolating Axes + 1 Spindle
CNC User Memory 3.0 MB
Display Size 10.4"
Data Transfer Ethernet, USB
Number of Digital I/O 72IN/48OUT (expandable)
Feed Motor, Max. Speed 3,000 RPM
Continuous Torque 6Nm, 6Nm (X,Y)
Drive Overload 300%
Absolute Encoder 20 + 12 Bit Multiturn
Interface to Drive Drive Bus
Degree of Protection IP64
System Input Voltage 230V or 460V 3-Phase (60 Hz)

Additional Information

ShopMill Conversational Features

     • Drilling, Milling, and Contouring Cycles (Tapping, Engraving, Pocket, etc.)

     • Ability to Write and Edit G-Code

     • Repeat, Rotate, and Mirror

     • Solid Model Graphics (Centered Block, Pipe, Cylinder, N Corner, and Regular Block)

     • DXF Import

     • Estimated Machining Time

Available Options

     • Wireless Hand Pulse Generator

     • Spindle Drive/Motor on Digital Drive Bus

     • Linear Feedback Encoders

     • Probing Cycles

     • FREE Offline Software

     • Turnkey Installation & Commissioning


Contact Us For More Kit Options

We offer tons of package configurations for the Siemens 828D CNC System. If you have any questions about the 828D control or your specific application, please contact us. We are here to help in any way that we can.
