Servo Products - Dynamo Import Power Feeds for Milling Machines

$502.00 $452.00

Reviews (0)

SKU:: SERSD-1000-0200

Call for Availability

Price and SKU will update based on options selected.

Feed Type *

Table Feed (X) Cross Feed (Y) Knee Feed (Z)

Machine

Current stock: 0

Quantity

Description
Reviews
Additional Info

Description

If you don't see the correct model for your machine please call 317-593-2034 or Request a Quote

All Powerfeeds in the pulldown come with everything you will need to mount the unit to your machine (bracket and brass gear included), excluding the base models.

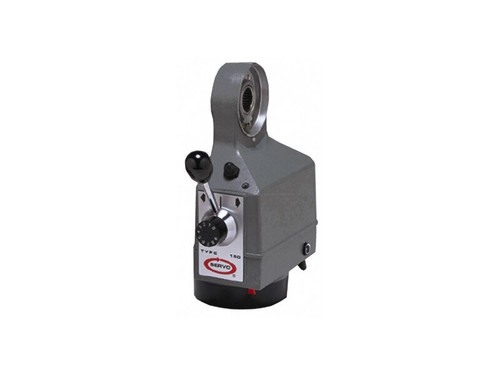

Dynamo - Table, Cross, Knee Feeds

Full wave SCR/DC Motor (similar to the Servo Type 150 Power Feed)
Electro-Mechanical Clutch
Reverse direction without waiting for complete stop
Limits torque to 140 in-lb protecting nylon gear from breakage
Eliminates over travel due to inertia of motor when contacting limit stops or loss of power
Electro-Mechanical Clutch and full wave SCR circuit allows superior cutting at low speeds
Jog switch
Make incremental moves; length adjustable determined by speed control setting
Limit switch
Fluid protective cover
Control panel fluid protective lip helps minimize coolant damage to all front control switches
Helical gear provides the smoothest, quietest operation available
Torque: 140in-lb peak / 100in-lb continuous
Feed rate: 0.4 to 37.4 IPM

NOTE: Servo Products Company has made every effort to provide mounting hardware kits that are as accurate and complete as possible for each machine model. However, machine builders may change their designs without letting us know. Therefore, some kits may not fit properly. Please let us know when this happens.
