Newall MHG-TT Incremental Encoder
Request Quote for Pricing
- SKU:
- NEWLMHGTT
Call for Lead Time
Description
Reviews
Additional Info
Description
The MHG-TT linear encoder is compatible with the majority of PLC and CNC controls. The encoder provides a differential quadrature output at TTL levels. The periodic reference mark is typically used for homing purposes.
Note: Prices include scale, reader head, scale support brackets. *Contact us for travels not shown.

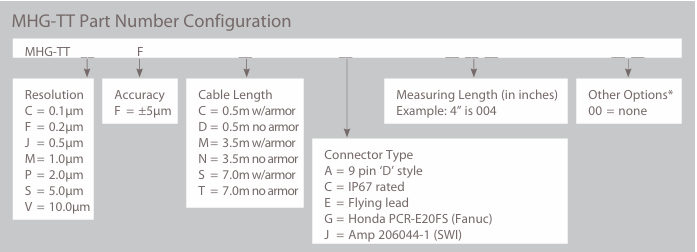

Additional Options
The Newall Advantage
- IP67 rating (NEMA 6)
- Withstands dust, dirt, oil and other harsh environmental conditions
- No mechanical wear characteristics
- Requires no cleaning or maintenance
- High tolerance to shock and vibration
- High reliability
Quick and Easy Installation
The design of these linear encoders allow installment in almost any position, unlike glass-scale linear encoders, which usually need to be installed with the lip seal facing downwards to prevent contamination. Self-aligning fixing brackets allow virtually effortless scale mounting, needing only a single hole for each set of brackets.
Download Documentation
- Encoder Compatibility List by Manufacturer
- MHG Dimensional Drawing
- Installation Manual
- Newall Linear Encoder Catalog
Specifications
| Output Signal | TTL Differential A Quad B |
| Accuracy/Meter | ±0.0002" (±5µm) |
| Resolutions | 10µm, 5µm, 2µm, 1µm, 0.5µm, 0.2µm or 0.1µm |
| Scale Travels | 2" to 40" (51mm to 1,016mm) |
| Scale Diameter | 0.226" (5.75mm) |
| Reader Head Dimensions | 1.38"H x 2.95"L x 0.98"D (35mm x 75mm x 24mm) |
| Reference Marker | Every 0.19" (5mm) |
| Equivalent Line Count/Inch | 635, 1270, 3175, 6350, 12,700, 31,750 |
| Maximum Traverse Rate | 65.6' (20m)/second (10µm), pro-rated to resolution |
| Power Supply | 5VDC ±5%, <70mA |
| Shock (11ms) | 100g (IEC 69-2-6) |
| Vibration (55-2000Hz) | 30g (IEC 68-2-27) |
| Sample Period | 100µs |
| Environmental Rating | IP67, fully submersible (IEC 529) - Exceeds NEMA 6 |
| Operating Temperature | 32° to 131°F (0° to 55°C) |
| Coefficient of Expansion | 12 x 10-6K |
| Scale Material | Carbon fiber |
| Overall Scale Length | Scale travel length + 7.4" (187mm) |
| Standard Cable | 9 core, 11.5' (3.5m) armored |
| Maximum Cable Length | 72.2' (22m) |
| Standard Connector | 9 pin "D" type |
| EMC Compliance | BS EN 50081-2 and BS EN 61000-6-2 |
