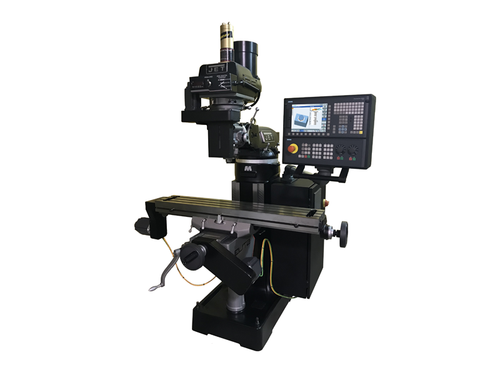

KENT BM-3 CNC Bed Mill with Siemens 828D Control, 10" x 50" Table

$37,499.00 $33,999.00
SKU:
KENT-BM3828D

Call for Lead Time

Current stock: 0
Description

Description

INTRODUCTORY OFFER: FREE QUILL SCALE INCLUDED!!! ($750 VALUE)

The KENT USA BM-3 cnc bed type milling machine combines proven designs with the latest advance technology in engineering and over 40 years of manufacturing excellence. Reliability and performance makes these a favorite among demanding job shops and in-house tool rooms alike. With best in class features and superior built quality, the BM-3 bed mills are the new industry standard in high performance cnc bed-type milling machines. Upgrade your global competitiveness today.

Why Kent USA BM-3? Rigid Spindle/Head housing with powerful 3 hp vector drive spindle motor, 80 - 4500 rpm programmable spindle provides greater range of machining capability, Metal telescopic way cover on front saddle ways for enhance durability, X-axis and Y-axis metal hand wheels for manual operation and set ups, Automatic lubrication system with metered check valves, Programmable flood coolant with splash guards and chip pan, Built-in coolant reservoir in machine base, and Certified Meehanite® machine casting for superior dampening and stability



Standard Accessories

• Siemens 828D CNC control w/ Digital Drive System (10.4" Screen)

• USB 2.0, Ethernet, CF Data Interfaces

• Programmable flood coolant (M08), splash guards and chip pan

• Automatic lubrication system and work light

• Wireless Hand Pulse Generator

• Standard tools and manuals

2 Year Siemens CNC System Warranty

• 1 FREE Technician Visit within Warranty Period



Feature Overview

• ShopMill Conversational Programming

• Absolute Encoders - NO Homing Required

• DXF Reader (DXF PC Software Available Free As Well)

• 3D Part Simulation

• Dedicated Jog + Rapid Rate Keys (X, Y, Z)

• Software Travel Limits

200 IPM RAPID FEED RATE

• Feedrate/Spindle Speed Override Knobs

• Custom Machine Hotkeys such as:

o Tool Change (Z Retract)

o Tool Carousel CW/CCW, HOME, OFF

o Work Light

o Coolant On

o Spindle CW/CCW

o G54 – G59 Work Offset Activation Keys

o Specific Cycle Start Keys

 Get Fast & Easy Financing  (As low as: $657/mo)

powerdollarexpress.png Get instant funding with low monthly payments

Specifications

Table Size 10" x 50"
Table Travel (X-Axis) 34" (32" with control)
Saddle Travel (Y-Axis) 16" (14" with control)
Column Travel (Z-Axis) 24" (22" with control)
Quill Travel 5"
Quill Diameter 3-3/8"
Table Load Capacity 1480lbs (distributed)
T-slots (number x width) 3 x 5/8"
Spindle Motor Size 3HP
Spindle Taper R8 (NMTB30 Opt.)
Speed Range 80-4500rpm
Drilling Capacity 1" Diameter
Tapping Capacity 0.25" Diameter
Power Required 220V / 3PH / 50A
Machine Weight 4100lbs
Packing Dimension 78" x 51" x 80"



Additional Information

ShopMill Conversational Features:

• Drilling, Milling, and Contouring Cycles (Tapping, Engraving, Pocket, etc.)

• Ability to Write and Edit G-Code

• Repeat, Rotate, and Mirror

• Solid Model Graphics (Centered Block, Pipe, Cylinder, N Corner, and Regular Block)

• DXF Import

• Estimated Machining Time



Available Options

• Quill Scale Feedback (Included for a limited time)

Wireless Touch Part Probe

Wireless Tool Setter

• 4th Axis Motor/Drive

• Air Power Drawbar



Want to try Sinumerik CNC Before you Buy?



Download the FREE PC Software HERE

Try the FREE Web Based Training HERE

Try the FREE Training Webinars HERE
