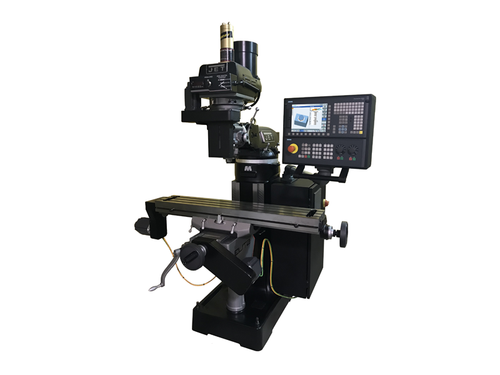

KENT Acu-Mill AM5 Educational CNC Machining Center Machine with Siemens 828D

$39,499.00 $35,499.00
SKU:
KENT-AM5828D

Call for Lead Time

Current stock: 0
Description

Description

The Kent Acu-Mill AM5 is perfect for for R&D, medical manufacturing, and technical schools. Now, you can get the perfect CNC mill with outstanding features for precise and efficient milling year after year. Kent USA mills are quality built with many outstanding features, such as Conversational CNC control, 8,000 RPM spindle speed and linear ways on 3-axes that allow for high-speed machining.

Why Kent USA AM5? The bed and column are manufactured from high quality Meehanite cast iron and stress relieved for a lifetime of accuracy, Box-type column construction, combined with scientific rib reinforcement for outstanding rigidity as well as excellent ability to dampen vibration, and reduce deflection and thermal displacement, Precision linear motion guides are used on X, Y, Z-axes, providing 400ipm. of rapid traverse rates and 400ipm of cutting feed rates on X, Y, Z-axes, 8000 RPM spindle speed,



Standard Accessories

• Siemens 828D CNC control w/ Digital Drive System (10.4" Screen)

• USB 2.0, Ethernet, CF Data Interfaces

• Coolant system (8G) and Auto Oiler

• PMI linear guide way, ball screws

• 8 Tool Automatic Tool Changer

• Wireless Hand Pulse Generator

• Standard tools and manuals

• 2 Year Siemens CNC System Warranty

• 1 FREE Technician Visit within Warranty Period



Feature Overview

• ShopMill Conversational Programming

• Absolute Encoders - NO Homing Required

• DXF Reader (DXF PC Software Available Free As Well)

• 3D Part Simulation

• Dedicated Jog + Rapid Rate Keys (X, Y, Z)

• Software Travel Limits

• Rigid Tapping

• 400 IPM RAPID FEED RATE

• Feedrate/Spindle Speed Override Knobs

• Custom Machine Hotkeys such as:

o Tool Change (Z Retract)

o Tool Carousel CW/CCW, HOME, OFF

o Work Light

o Coolant On

o Spindle CW/CCW

o G54 – G59 Work Offset Activation Keys

 Get Fast & Easy Financing (As low as: $686/mo)

powerdollarexpress.png Get instant funding with low monthly payments

Specifications

Table Size 9.84" x 31.89"
Table Travel (X-Axis) 13.8"
Saddle Travel (Y-Axis) 8.3"
Column Travel (Z-Axis) 13.4"
Spindle Center to Column 10.24"
Spindle to Table 1.97" to 15.4"
Table Load Capacity 176lbs
T-slots (number x width) 3 x .63"
Spindle Motor Size 3HP
Spindle Taper CAT-40
Spindle Speed 8000rpm
ATC Armless Type 8 Tool
Maximum Tool Diameter 3.15"
Power Required 220V / 3PH / 50A
Machine Weight 3278lbs
Packing Dimension 77" x 73" x 90"



Additional Information

ShopMill Conversational Features:

• Drilling, Milling, and Contouring Cycles (Tapping, Engraving, Pocket, etc.)

• Ability to Write and Edit G-Code

• Repeat, Rotate, and Mirror

• Solid Model Graphics (Centered Block, Pipe, Cylinder, N Corner, and Regular Block)

• DXF Import

• Estimated Machining Time



Available Options

• Wireless Touch Part Probe

• Wireless Tool Setter

• 4th Axis Motor/Drive

• Sheet Metal Frame

• Coolant through spindle





Want to try Sinumerik CNC Before you Buy?



Download the FREE PC Software HERE

Try the FREE Web Based Training HERE
