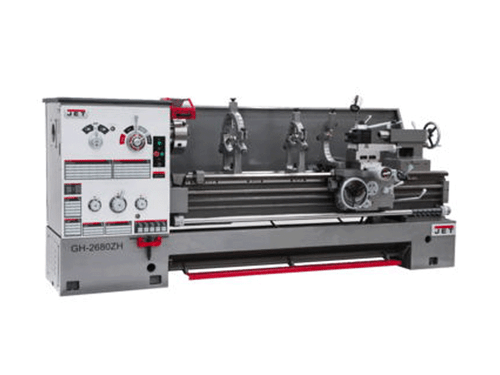

GH-2680ZH, 4-1/8" Spindle Bore Geared Head Lathe
$56,292.86
$45,799.00
- SKU:
- JET321860
Description
Reviews
Additional Info
Description
The JET ZH-Series 4-1/8” spindle bore lathes feature a clutch operated headstock, universal gearbox, and a rapid traverse on the apron that makes the ZH-Series perfect for high-output production applications. Features you've come to expect in a JET Lathe that is backed by the industry-leading JET Two Year Warranty.
| STOCK NUMBER | 321860 |
|---|---|
| Max. swing over bed (in.) | 26 |
| Max. swing over cross slide (in.) | 16.5 |
| Swing Through Gap (in.) | 34 |
| Length of Gap (in.) | 8 |
| Distance between Centers (in.) | 80 |
| Hole Through Spindle (in.) | 4 1/8" |
| Spindle Mount | D1-8 |
| Spindle Taper | MT-5 |
| Number of Spindle Speeds | 12 |
| Range of Spindle Speeds (RPM) | 36-1,600 |
| Number of Longitudinal Feeds (in.) | 65 |
| Range of Longitudinal Feeds (Inch/rev) | .0023-.0937 |
| Number of Cross Feeds | 63 |
| Range of Cross Feeds (Inch/rev) | .0010-.0404 |
| Number of Inch Threads | 48 |
| Range of Inch Threads | 2 to 30 |
| Number of Metric Threads | 22 |
| Range of Metric Threads (mm) | 1 to 14 |
| Number of D.P Threads | 24 |
| Range of D.P Threads | 4-56 DPI |
| Number of Module Threads | 18 |
| Range of Module Threads (mm) | 0.5-7 |
| Max. Tool Size | 1-1/4 x 1-1/4 |
| Max. Compound Slide Travel (in.) | 5 1/2" |
| Max. Cross Slide Travel (in.) | 12 3/32" |
| Max. Carriage Travel (in.) | 72-1/2 |
| Tailstock Spindle Travel (in.) | 6 |
| Taper in Tailstock Spindle | MT-5 |
| Follow Rest Capacity | 25/32 - 3-15/16 |
| Steady Rest Capacity -Small | 25/32 - 4-29/32 |
| Steady Rest Capacity -Large | 3-15/16 - 9-7/16 |
| Width of Bed (in.) | 16 |
| Coolant Pump System | 1/8HP |
| Main Motor | 10HP, 230/460V, 3Ph |
| Prewired | 230V |
| Net Weight (lbs) | 8514 |
| Overall Dimensions (LxWxH/Inch) | 138 x 43 x 57 |
| LARGE SPINDLE BORE LATHE AND ACCESSORY PACKAGES INSTALLED | STOCK NUMBER |
|---|---|
| 26" x 80" Geared Head Engine Lathe with Newall DP700 DRO | 321861 |
| Optional Equipment | STOCK NUMBER |
|---|---|
| Taper Attachment | 321293 |
Features
- Clutch Operated Headstock with All Headstock Gears Hardened and Ground
- Universal Gearbox Allows Inch, Metric, Diametral and Module Pitch Threads, No Change Gears Required
- Meehanite Castings are Used for Added Durability
- Bed Ways are Induction Hardened and Ground for Durability
- Full Length Splash Guard
- Heavy-Duty Tailstock and Quill
- Rapid Power Traverse to Cross Slide and Carriage
- Siemens Electrics
Standard Equipment
- Drive Plate
- 12" 3-Jaw Scroll Chuck with Top Reversing Jaws
- Face Plate
- 2 Steady Rests with Roller Bearings
- Follow Rest
- Large Capacity Steady Rest with Ball Bearing Tips
- 5pc. Quick Change Tool Post Set
- Micro-Carriage Bed Stop
- Fully Integrated Coolant System
- LED Work Lamp
- Electronic Chuck Key Holder
- Fitted Top Mats to Hold Tooling
- E-Stop on Carriage for Added Safety
- Large Easy to Use Foot Brake
Reviews (0)
Be the first to review this product.
Additional Info
- Warranty:
- <p><a href="http://content.jettools.com/assets/manuals/321860_man_EN.pdf" target="_blank">ZH Series Large Bore Lathes Manual</a></p>
- SKU:
- JET321860
- Shipping:
- $0.00 (Fixed Shipping Cost)
- Mfr Part #:
- 321860
- Style (Type):
- Engine - Large Spindle Bore
- Spindle Bore (IN.):
- 4-1/8
- Swing Over Bed (IN.):
- 26
- Distance Between Centers (IN.):
- 80
- Digital Readout:
- Newall DP700
