Freestanding Workstation Jib Cranes - Spanco 500-Series
Only $1230.00 - $3865.00
- SKU:
- RQ-SPAO-500-Series
Request quote for availability
Description
Reviews
Additional Info
Description

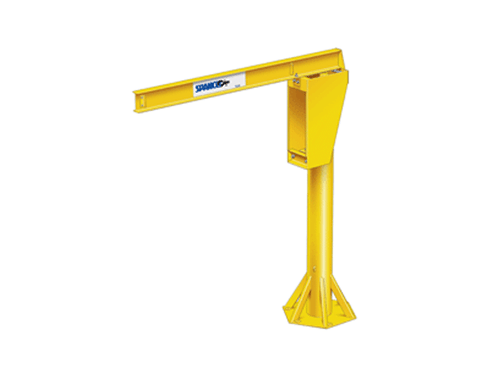

These free standing workstation jib cranes have 360 degree rotation. They have easy, economic movement for repetitive loads or tooling, with a trolley included. The freestanding sytem can be permanately installed onto a concrete foundation or portable base. Capacities are available from 100 lbs. through 1000 lbs. with spans through 16' and height under boom of 12'. Indoor service paint finish is standard; outdoor service, food grade service and seaside service available. All models include a 10 year warranty.
Spanco Freestanding Workstation Jib Crane Models
| MODEL NUMBER | CAPACITY | HEIGHT UNDER BOOM (A) | SPAN (B) | MAST DIAMETER | OVERALL HEIGHT (D) | CLEVIS OFFSET | TROLLEY CLEVIS HEIGHT (F) | TRACK DEPTH (G) | GUSSET HEIGHT (H) | Track Series | WEIGHT (LBS.) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 500-100-4-8 | 100 Lbs. | 8' | 4' | 6 5/8" | 8'-5" | 2 1/4" | 7'-7" | 4 1/4" | 4" | 400 | 250 |
| 500-100-6-8 | 100 Lbs. | 8' | 6' | 6 5/8" | 8'-5" | 2 1/4" | 7'-7" | 4 1/4" | 4" | 400 | 265 |
| 500-100-8-8 | 100 Lbs. | 8' | 8' | 6 5/8" | 8'-9 3/4" | 2 1/4" | 7'-7" | 9" | 4" | 400 | 335 |
| 500-100-10-8 | 100 Lbs. | 8' | 10' | 6 5/8" | 8'-9 3/4" | 2 1/4" | 7'-7" | 9" | 4" | 400 | 350 |
| 500-100-12-8 | 100 Lbs. | 8' | 12' | 6 5/8" | 8'-11 3/4" | 2 1/4" | 7'-7" | 11" | 4" | 400 | 365 |
| 500-100-14-8 | 100 Lbs. | 8' | 14' | 6 5/8" | 8'-11 3/4" | 2 1/4" | 7'-7" | 11" | 4" | 400 | 404 |
| 500-100-16-8 | 100 Lbs. | 8' | 16' | 6 5/8" | 8'-11 3/4" | 2 1/4" | 7'-7" | 11" | 4" | 400 | 425 |
| 500-100-4-10 | 100 Lbs. | 10' | 4' | 6 5/8" | 10'-5" | 2 1/4" | 9'-7" | 4 1/4" | 4" | 400 | 285 |
| 500-100-6-10 | 100 Lbs. | 10' | 6' | 6 5/8" | 10'-5" | 2 1/4" | 9'-7" | 4 1/4" | 4" | 400 | 300 |
| 500-100-8-10 | 100 Lbs. | 10' | 8' | 6 5/8" | 10'-9 3/4" | 2 1/4" | 9'-7" | 9" | 4" | 400 | 365 |
| 500-100-10-10 | 100 Lbs. | 10' | 10' | 6 5/8" | 10'-9 3/4" | 2 1/4" | 9'-7" | 9" | 4" | 400 | 375 |
| 500-100-12-10 | 100 Lbs. | 10' | 12' | 6 5/8" | 10'-11 3/4" | 2 1/4" | 9'-7" | 11" | 4" | 400 | 410 |
| 500-100-14-10 | 100 Lbs. | 10' | 14' | 6 5/8" | 10'-11 3/4" | 2 1/4" | 9'-7" | 11" | 4" | 400 | 430 |
| 500-100-16-10 | 100 Lbs. | 10' | 16' | 6 5/8" | 10'-11 3/4" | 2 1/4" | 9'-7" | 11" | 4" | 400 | 450 |
| 500-100-4-12 | 100 Lbs. | 12' | 4' | 6 5/8" | 12'-5" | 2 1/4" | 11'-7" | 4 1/4" | 4" | 400 | 325 |
| 500-100-6-12 | 100 Lbs. | 12' | 6' | 6 5/8" | 12'-5" | 2 1/4" | 11'-7" | 4 1/4" | 4" | 400 | 340 |
| 500-100-8-12 | 100 Lbs. | 12' | 8' | 6 5/8" | 12'-9 3/4" | 2 1/4" | 11'-7" | 9" | 4" | 400 | 405 |
| 500-100-10-12 | 100 Lbs. | 12' | 10' | 6 5/8" | 12'-9 3/4" | 2 1/4" | 11'-7" | 9" | 4" | 400 | 415 |
| 500-100-12-12 | 100 Lbs. | 12' | 12' | 6 5/8" | 12'-11 3/4" | 2 1/4" | 11'-7" | 11" | 4" | 400 | 460 |
| 500-100-14-12 | 100 Lbs. | 12' | 14' | 6 5/8" | 12'-11 3/4" | 2 1/4" | 11'-7" | 11" | 4" | 400 | 480 |
| 500-100-16-12 | 100 Lbs. | 12' | 16' | 6 5/8" | 12'-11 3/4" | 2 1/4" | 11'-7" | 11" | 4" | 400 | 545 |
| 500-150-4-8 | 150 Lbs. | 8' | 4' | 6 5/8" | 8'-5" | 2 1/4" | 7'-7" | 4 1/4" | 4" | 400 | 250 |
| 500-150-6-8 | 150 Lbs. | 8' | 6' | 6 5/8" | 8'-5" | 2 1/4" | 7'-7" | 4 1/4" | 4" | 400 | 265 |
| 500-150-8-8 | 150 Lbs. | 8' | 8' | 6 5/8" | 8'-9 3/4" | 2 1/4" | 7'-7" | 9" | 4" | 400 | 335 |
| 500-150-10-8 | 150 Lbs. | 8' | 10' | 6 5/8" | 8'-9 3/4" | 2 1/4" | 7'-7" | 9" | 4" | 400 | 350 |
| 500-150-12-8 | 150 Lbs. | 8' | 12' | 6 5/8" | 8'-11 3/4" | 2 1/4" | 7'-7" | 11" | 4" | 400 | 365 |
| 500-150-14-8 | 150 Lbs. | 8' | 14' | 6 5/8" | 9'-3 1/8" | 2 5/8" | 7'-7" | 14 3/8" | 4" | 500 | 505 |
| 500-150-16-8 | 150 Lbs. | 8' | 16' | 6 5/8" | 9'-3 1/8" | 2 5/8" | 7'-7" | 14 3/8" | 2 1/2" | 500 | 590 |
| 500-150-4-10 | 150 Lbs. | 10' | 4' | 6 5/8" | 10'-5" | 2 1/4" | 9'-7" | 4 1/4" | 4" | 400 | 285 |
| 500-150-6-10 | 150 Lbs. | 10' | 6' | 6 5/8" | 10'-5" | 2 1/4" | 9'-7" | 4 1/4" | 4" | 400 | 300 |
| 500-150-8-10 | 150 Lbs. | 10' | 8' | 6 5/8" | 10'-9 3/4" | 2 1/4" | 9'-7" | 9" | 4" | 400 | 365 |
| 500-150-10-10 | 150 Lbs. | 10' | 10' | 6 5/8" | 10'-9 3/4" | 2 1/4" | 9'-7" | 9" | 4" | 400 | 375 |
| 500-150-12-10 | 150 Lbs. | 10' | 12' | 6 5/8" | 10'-11 3/4" | 2 1/4" | 9'-7" | 11" | 4" | 400 | 410 |
| 500-150-14-10 | 150 Lbs. | 10' | 14' | 6 5/8" | 11'-3 1/8" | 2 5/8" | 9'-7" | 14 3/8" | 4" | 500 | 450 |
| 500-150-16-10 | 150 Lbs. | 10' | 16' | 6 5/8" | 11'-3 1/8" | 2 5/8" | 9'-7" | 14 3/8" | 2 1/2" | 500 | 635 |
| 500-150-4-12 | 150 Lbs. | 12' | 4' | 6 5/8" | 12'-5" | 2 1/4" | 11'-7" | 4 1/4" | 4" | 400 | 325 |
| 500-150-6-12 | 150 Lbs. | 12' | 6' | 6 5/8" | 12'-5" | 2 1/4" | 11'-7" | 4 1/4" | 4" | 400 | 340 |
| 500-150-8-12 | 150 Lbs. | 12' | 8' | 6 5/8" | 12'-9 3/4" | 2 1/4" | 11'-7" | 9" | 4" | 400 | 405 |
| 500-150-10-12 | 150 Lbs. | 12' | 10' | 6 5/8" | 12'-9 3/4" | 2 1/4" | 11'-7" | 9" | 4" | 400 | 415 |
| 500-150-12-12 | 150 Lbs. | 12' | 12' | 6 5/8" | 12'-11 3/4" | 2 1/4" | 11'-7" | 11" | 4" | 400 | 460 |
| 500-150-14-12 | 150 Lbs. | 12' | 14' | 8 5/8" | 13'-3 1/8" | 2 5/8" | 11'-7" | 14 3/8" | 2 1/2" | 500 | 650 |
| 500-150-16-12 | 150 Lbs. | 12' | 16' | 8 5/8" | 13'-3 1/8" | 2 5/8" | 11'-7" | 14 3/8" | 2 1/2" | 500 | 680 |
| 500-250-4-8 | 250 Lbs. | 8' | 4' | 6 5/8" | 8'-5" | 2 1/4" | 7'-7" | 4 1/4" | 4" | 400 | 250 |
| 500-250-6-8 | 250 Lbs. | 8' | 6' | 6 5/8" | 8'-5" | 2 1/4" | 7'-7" | 9" | 4" | 400 | 265 |
| 500-250-8-8 | 250 Lbs. | 8' | 8' | 6 5/8" | 8'-9 3/4" | 2 1/4" | 7'-7" | 9" | 4" | 400 | 335 |
| 500-250-10-8 | 250 Lbs. | 8' | 10' | 6 5/8" | 8'-11 3/4" | 2 1/4" | 7'-7" | 11" | 4" | 400 | 350 |
| 500-250-12-8 | 250 Lbs. | 8' | 12' | 8 5/8" | 9'-3 1/8" | 2 5/8" | 7'-7" | 14 3/8" | 18 3/8" | 500 | 615 |
| 500-250-14-8 | 250 Lbs. | 8' | 14' | 6 5/8" | 9'-3 1/8" | 2 5/8" | 7'-7" | 14 3/8" | 18 3/8" | 500 | 645 |
| 500-250-16-8 | 250 Lbs. | 8' | 16' | 6 5/8" | 9'-3 1/8" | 2 5/8" | 7'-7" | 14 3/8" | 18 3/8" | 500 | 675 |
| 500-250-4-10 | 250 Lbs. | 10' | 4' | 6 5/8" | 10'-5" | 2 1/4" | 9'-7" | 4 1/4" | 4" | 400 | 285 |
| 500-250-6-10 | 250 Lbs. | 10' | 6' | 6 5/8" | 10'-9 3/4" | 2 1/4" | 9'-7" | 9" | 4" | 400 | 350 |
| 500-250-8-10 | 250 Lbs. | 10' | 8' | 8 5/8" | 10'-9 3/4" | 2 1/4" | 9'-7" | 9" | 2 1/2" | 400 | 410 |
| 500-250-10-10 | 250 Lbs. | 10' | 10' | 8 5/8" | 10'-11 3/4" | 2 1/4" | 9'-7" | 11" | 2 1/2" | 400 | 425 |
| 500-250-12-10 | 250 Lbs. | 10' | 12' | 8 5/8" | 11'-3 1/8" | 2 5/8" | 9'-7" | 14 3/8" | 18 3/8" | 500 | 660 |
| 500-250-14-10 | 250 Lbs. | 10' | 14' | 8 5/8" | 11'-3 1/8" | 2 5/8" | 9'-7" | 14 3/8" | 18 3/8" | 500 | 690 |
| 500-250-16-10 | 250 Lbs. | 10' | 16' | 8 5/8" | 11'-3 1/8" | 2 5/8" | 9'-7" | 14 3/8" | 18 3/8" | 500 | 720 |
| 500-250-4-12 | 250 Lbs. | 12' | 4' | 6 5/8" | 12'-5" | 2 1/4" | 11'-7" | 4 1/4" | 4" | 400 | 325 |
| 500-250-6-12 | 250 Lbs. | 12' | 6' | 6 5/8" | 12'-9 3/4" | 2 1/4" | 11'-7" | 9" | 4" | 400 | 385 |
| 500-250-8-12 | 250 Lbs. | 12' | 8' | 8 5/8" | 12'-9 3/4" | 2 1/4" | 11'-7" | 9" | 2 1/2" | 400 | 455 |
| 500-250-10-12 | 250 Lbs. | 12' | 10' | 8 5/8" | 12'-11 3/4" | 2 1/4" | 11'-7" | 11" | 2 1/2" | 400 | 480 |
| 500-250-12-12 | 250 Lbs. | 12' | 12' | 8 5/8" | 12'-11 3/4" | 2 5/8" | 11'-7" | 14 3/8" | 18 3/8" | 500 | 705 |
| 500-250-14-12 | 250 Lbs. | 12' | 14' | 8 5/8" | 13'-3 1/8" | 2 5/8" | 11'-7" | 14 3/8" | 18 3/8" | 500 | 735 |
| 500-250-16-12 | 250 Lbs. | 12' | 16' | 12 3/4" | 13'-3 1/8" | 2 5/8" | 11'-7" | 14 3/8" | 20" | 500 | 915 |
| 500-500-4-8 | 500 Lbs. | 8' | 4' | 8 5/8" | 8'-10 3/4" | 2 5/8" | 7'-7" | 10" | 2 1/2" | 500 | 340 |
| 500-500-6-8 | 500 Lbs. | 8' | 6' | 8 5/8" | 8'-10 3/4" | 2 5/8" | 7'-7" | 10" | 2 1/2" | 500 | 370 |
| 500-500-8-8 | 500 Lbs. | 8' | 8' | 8 5/8" | 9'-1 1/8" | 2 5/8" | 7'-7" | 12 3/8" | 18 3/8" | 500 | 505 |
| 500-500-10-8 | 500 Lbs. | 8' | 10' | 12 3/4" | 9'-1 1/8" | 2 5/8" | 7'-7" | 12 3/8" | 20" | 500 | 635 |
| 500-500-12-8 | 500 Lbs. | 8' | 12' | 12 3/4" | 9'-3 1/8" | 2 5/8" | 7'-7" | 14 3/8" | 20" | 500 | 710 |
| 500-500-14-8 | 500 Lbs. | 8' | 14' | 12 3/4" | 9'-5 3/4" | 3 1/16" | 7'-7" | 17" | 20" | 600 | 998 |
| 500-500-16-8 | 500 Lbs. | 8' | 16' | 12 3/4" | 9'-5 3/4" | 3 1/16" | 7'-7" | 17" | 20" | 600 | 1014 |
| 500-500-4-10 | 500 Lbs. | 10' | 4' | 8 5/8" | 10'-10 3/4" | 2 5/8" | 9'-7" | 10" | 2 1/2" | 500 | 380 |
| 500-500-6-10 | 500 Lbs. | 10' | 6' | 8 5/8" | 10'-10 3/4" | 2 5/8" | 9'-7" | 10" | 2 1/2" | 500 | 410 |
| 500-500-8-10 | 500 Lbs. | 10' | 8' | 8 5/8" | 11'-1 1/8" | 2 5/8" | 9'-7" | 12 3/8" | 18 3/8" | 500 | 550 |
| 500-500-10-10 | 500 Lbs. | 10' | 10' | 12 3/4" | 11'-1 1/8" | 2 5/8" | 9'-7" | 12 3/8" | 20" | 500 | 635 |
| 500-500-12-10 | 500 Lbs. | 10' | 12' | 12 3/4" | 11'-3 1/8" | 2 5/8" | 9'-7" | 14 3/8" | 20" | 500 | 790 |
| 500-500-14-10 | 500 Lbs. | 10' | 14' | 12 3/4" | 11'-5 3/4" | 3 1/16" | 9'-7" | 17" | 20" | 600 | 1010 |
| 500-500-16-10 | 500 Lbs. | 10' | 16' | 12 3/4" | 11'-5 3/4" | 3 1/16" | 9'-7" | 17" | 20" | 600 | 1090 |
| 500-500-4-12 | 500 Lbs. | 12' | 4' | 8 5/8" | 12'-10 3/4" | 2 5/8" | 11'-7" | 10" | 2 1/2" | 500 | 430 |
| 500-500-6-12 | 500 Lbs. | 12' | 6' | 8 5/8" | 12'-10 3/4" | 2 5/8" | 11'-7" | 10" | 2 1/2" | 500 | 460 |
| 500-500-8-12 | 500 Lbs. | 12' | 8' | 12 3/4" | 13'-1 1/8" | 2 5/8" | 11'-7" | 12 3/8" | 20" | 500 | 745 |
| 500-500-10-12 | 500 Lbs. | 12' | 10' | 12 3/4" | 13'-1 1/8" | 2 5/8" | 11'-7" | 12 3/8" | 20" | 500 | 770 |
| 500-500-12-12 | 500 Lbs. | 12' | 12' | 12 3/4" | 13'-3 1/8" | 2 5/8" | 11'-7" | 14 3/8" | 20" | 500 | 855 |
| 500-500-14-12 | 500 Lbs. | 12' | 14' | 12 3/4" | 13'-5 1/8" | 3 1/16" | 11'-7" | 17" | 20" | 600 | 1030 |
| 500-500-16-12 | 500 Lbs. | 12' | 16' | 12 3/4" | 13'-5 1/8" | 3 1/16" | 11'-7" | 17" | 20" | 600 | 1115 |
| 500-1000-4-8 | 1000 Lbs. | 8' | 4' | 12 3/4" | 8'-11 3/4" | 3 1/16" | 7'-7" | 11" | 20" | 600 | 570 |
| 500-1000-6-8 | 1000 Lbs. | 8' | 6' | 12 3/4" | 8'-11 3/4" | 3 1/16" | 7'-7" | 11" | 20" | 600 | 610 |
| 500-1000-8-8 | 1000 Lbs. | 8' | 8' | 12 3/4" | 8'-11 3/4" | 3 1/16" | 7'-7" | 11" | 20" | 600 | 665 |
| 500-1000-10-8 | 1000 Lbs. | 8' | 10' | 12 3/4" | 9'-2 1/8" | 3 1/16" | 7'-7" | 13 7/8" | 20" | 600 | 755 |
| 500-1000-12-8 | 1000 Lbs. | 8' | 12' | 12 3/4" | 9'-5 3/4" | 3 1/16" | 7'-7" | 17" | 20" | 600 | 835 |
| 500-1000-14-8 | 1000 Lbs. | 8' | 14' | 12 3/4" | 9'-8 3/4" | 4 1/8" | 7'-6" | 20" | 20" | 700 | 1008 |
| 500-1000-16-8 | 1000 Lbs. | 8' | 16' | 12 3/4" | 9'-8 3/4" | 4 1/8" | 7'-6" | 20" | 20" | 700 | 1096 |
| 500-1000-4-10 | 1000 Lbs. | 10' | 4' | 12 3/4" | 10'-11 3/4" | 3 1/16" | 9'-7" | 11" | 20" | 600 | 640 |
| 500-1000-6-10 | 1000 Lbs. | 10' | 6' | 12 3/4" | 10'-11 3/4" | 3 1/16" | 9'-7" | 11" | 20" | 600 | 675 |
| 500-1000-8-10 | 1000 Lbs. | 10' | 8' | 12 3/4" | 10'-11 3/4" | 3 1/16" | 9'-7" | 11" | 20" | 600 | 735 |
| 500-1000-10-10 | 1000 Lbs. | 10' | 10' | 12 3/4" | 11'-2 1/8" | 3 1/16" | 9'-7" | 13 7/8" | 20" | 600 | 820 |
| 500-1000-12-10 | 1000 Lbs. | 10' | 12' | 12 3/4" | 11'-5 3/4" | 3 1/16" | 9'-7" | 17" | 20" | 600 | 900 |
| 500-1000-14-10 | 1000 Lbs. | 10' | 14' | 12 3/4" | 11'-8 3/4" | 4 1/8" | 9'-6" | 20" | 20" | 700 | 1068 |
| 500-1000-16-10 | 1000 Lbs. | 10' | 16' | 12 3/4" | 11'-8 3/4" | 4 1/8" | 9'-6" | 20" | 20" | 700 | 1139 |
| 500-1000-4-12 | 1000 Lbs. | 12' | 4' | 12 3/4" | 12'-11 3/4" | 3 1/16" | 11'-7" | 11" | 20" | 600 | 705 |
| 500-1000-6-12 | 1000 Lbs. | 12' | 6' | 12 3/4" | 12'-11 3/4" | 3 1/16" | 11'-7" | 11" | 20" | 600 | 745 |
| 500-1000-8-12 | 1000 Lbs. | 12' | 8' | 12 3/4" | 12'-11 3/4" | 3 1/16" | 11'-7" | 11" | 20" | 600 | 800 |
| 500-1000-10-12 | 1000 Lbs. | 12' | 10' | 12 3/4" | 13'-2 3/4" | 3 1/16" | 11'-7" | 13 7/8" | 20" | 600 | 890 |
| 500-1000-12-12 | 1000 Lbs. | 12' | 12' | 12 3/4" | 13'-5 3/4" | 3 1/16" | 11'-7" | 17" | 20" | 600 | 965 |
| 500-1000-14-12 | 1000 Lbs. | 12' | 14' | 12 3/4" | 13'-8 3/4" | 4 1/8" | 11'-6" | 20" | 20" | 700 | 1147 |
| 500-1000-16-12 | 1000 Lbs. | 12' | 16' | 12 3/4" | 13'-8 3/4" | 4 1/8" | 11'-6" | 20" | 20" | 700 | 1218 |
Options
| MODEL NUMBER | DESCRIPTION | DETAILS |
|---|---|---|
| 1535E | Cable/ Air Festoon End Clamp for Enclosed Track Systems | Festoon End Clamp can carry flat electrical cable or round air hose |
| 1535K | Cable/ Air Festoon Trolley for 500 Series Track | Trolley can carry flat electrical cable or round air hose |
| 1735K | Cable/ Air Festoon Trolley for 600, 700 and 900 Series Track | Trolley can carry flat electrical cable or round air hose |
| 60-0015 | Flat wire cable, 4 conductor, #12 AWG | Part number = 1 foot length; order quantity will be in total number of feet |
| 61-0002-2 | Flat wire cable cord grip connectors, 4 conductor, #12 AWG cable (price is per pair) | |
| 06-0196 | 1" Diameter Anchor Bolts for 36" poured foundation; set of 6 | |
| 06-0197 | 1" Diameter Anchor Bolts for 48" poured foundation; set of 6 | |
| 04-090 | Anchor Bolt Template for 500 Series Jib Crane; 24" Hexagon Base Plate | Plywood template speeds up the placement of anchor bolts when pouring the recommended foundation |
| 04-091 | Anchor Bolt Template for 500 Series Jib Crane: 30" Hexagon Base Plate | |
| PB12-2000 | Portable Base for 500 Series Jib Crane | Steel fabricated portable base is designed with fork lift pockets and is filled with cement (All Portable Base Dimensions Can Be Found in the Product's Photos) |
| PB12-3000 | Portable Base for 500 Series Jib Crane | |
| PB12-4000 | Portable Base for 500 Series Jib Crane | |
| PB24-4000 | Portable Base for 500 Series Jib Crane | |
| PB30-4000-4X4 | Portable Base for 500 Series Jib Crane | |
| PB30-4000-5X5 | Portable Base for 500 Series Jib Crane | |
| PB24-4800 | Portable Base for 500 Series Jib Crane | |
| PB30-4800 | Portable Base for 500 Series Jib Crane | |
| PB24-5500 | Portable Base for 500 Series Jib Crane | |
| PB30-5500 | Portable Base for 500 Series Jib Crane | |
| PB30-6100 | Portable Base for 500 Series Jib Crane | |
| PB30-7800 | Portable Base for 500 Series Jib Crane | |
| PB30-8000 | Portable Base for 500 Series Jib Crane |
Reviews (0)
Be the first to review this product.
Additional Info
- Warranty:
- <p><a href="http://machinetoolproducts.com/content/Spanco/Install-Freestanding-Jib-FR_WJ.pdf" target="_blank">500-Series Manual</a></p>
- SKU:
- RQ-SPAO-500-Series
- Availability:
- Request quote for availability
- Mounting:
- Floor
- Standard Capacities:
- Up to 1,000 lbs.
- Spans:
- Up to 16 ft.
- Heights:
- Up to 12 ft. (Under Beam)
- Power Option:
- No
