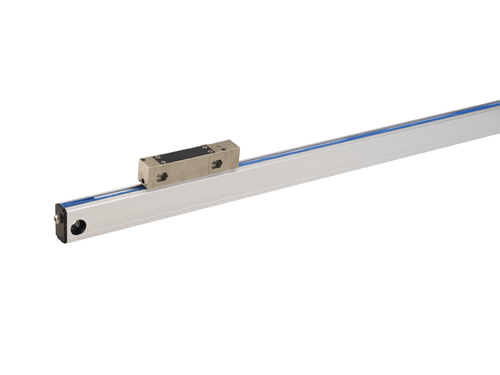

Fagor SV Series Incremental Encoders (70mm - 1240mm)

Contact Us for Pricing

SKU:
FAGRSV
Price and SKU will update based on options selected.
Current stock: 0
Description

Description

Specially designed for high performance environment requiring high speed and accuracy and the need to withstand higher vibrations.
The TDMS™ mounting system incorporated through a separate back bar ensures greater accuracy, higher repeatability and ability to withstand vibrations without compromising machine performance.

Lengths

70 • 120 • 170 • 220 • 270 • 320 • 370 • 420 • 470 • 520 • 570 • 620 • 720 • 770 • 820 • 920 • 1 020 • 1 140 • 1 240 • 1 340 • 1 440 • 1 540 • 1 640 • 1 740 • 1 840 • 2 040



 SVXSVYSVWSVZSVP
Measurement By means of a 20 μm-pitch graduated glass
Glass thermal expansion coefficient αtherm: 8 ppm/K aprox.
Measuring resolution 1 μm 0,5 μm 0,1 μm 0,05 μm Hasta 0,1 μm
Output signals TTL differential TTL differential TTL differential TTL differential 1 Vpp
Incremental signal period 4 μm 2 μm 0,4 μm 0,2 μm 20 μm
Limit frequency 500 KHz 1 MHz 1,5 MHz 500 KHz 100 KHz
Maximum speed 120 m/min 120 m/min 36 m/min 6 m/min (*) 120 m/min
Minimum distance between flanks 0,5 microseconds 0,25 microseconds 0,1 microseconds 0,3 microseconds -
Reference marks I0 SVX, SVY, SVW, SVZ y SVP: every 50 mm
SVOX, SVOY, SVOW, SVOZ y SVOP: distance-coded I0
SVSX, SVSY, SVSW, SVSZ y SVSP: selectable I0
Maximum cable length 50 m 50 m 50 m 50 m 150 m
Supply voltage 5 V ± 10%, 250 mA (without load)
Accuracy ± 5 μm/m
± 3 μm/m
± 5 μm/m
± 3 μm/m
± 5 μm/m
± 3 μm/m
± 5 μm/m
± 3 μm/m
± 5 μm/m
± 3 μm/m
Maximum vibration 20 g with mounting plate
Maximum shock 30 g (11 ms) IEC 60068-2-27
Maximum acceleration 10 g in the measuring direction
Required moving force < 4 N
Operating temperature 0 ºC … 50 ºC
Storage temperature -20 ºC ... 70 ºC
Weight 0,25 kg + 1,35 kg/m
Relative humidity 20 … 80%
Protection IP 53 (standard)
IP 64 (DIN 40050) using pressurized air at 0.8 ± 0.2 bar in linear encoders
Reader With built-in connector
