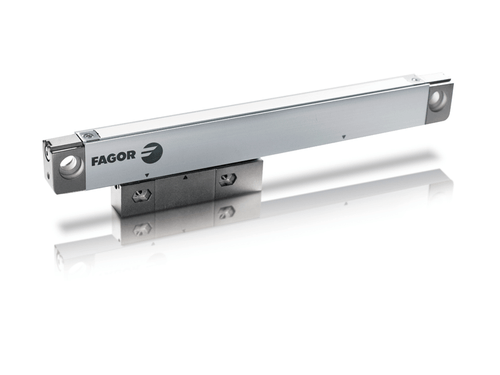

Fagor S Series Incremental Encoders (70mm - 1240mm)

Reviews (0)

Price and SKU will update based on options selected.

Accuracy

Length (70mm - 2040mm)

Model *

Current stock: 0

Specially designed for high performance environment requiring high speed and accuracy. Ideal for limited mounting spaces.

Lengths

70 • 120 • 170 • 220 • 270 • 320 • 370 • 420 • 470 • 520 • 570 • 620 • 720 • 770 • 820 • 920 • 1 020 • 1 140 • 1 240

	SX	SY	SW	SZ	SP
Measurement	By means of a 20 μm-pitch graduated glass
Glass thermal expansion coefficient	αtherm: 8 ppm/K aprox.
Measuring resolution	1 μm	0,5 μm	0,1 μm	0,05 μm	Hasta 0,1 μm
Output signals	TTL differential	TTL differential	TTL differential	TTL differential	1 Vpp
Incremental signal period	4 μm	2 μm	0,4 μm	0,2 μm	20 μm
Limit frequency	500 KHz	1 MHz	1,5 MHz	500 KHz	100 KHz
Maximum speed	120 m/min	120 m/min	36 m/min	6 m/min (*)	120 m/min
Minimum distance between flanks	0,5 microseconds	0,25 microseconds	0,1 microseconds	0,3 microseconds	-
Reference marks I0	SX, SY, SW, SZ and SP: every 50 mm SOX, SOY, SOW, SOZ and SOP: distance-coded I0 SSX, SSY, SSW, SSZ and SSP: selectable I0
Maximum cable length	50 m	50 m	50 m	50 m	150 m
Supply voltage	5 V ± 10%, 250 mA (without load)
Accuracy	± 5 μm/m ± 3 μm/m	± 5 μm/m ± 3 μm/m	± 5 μm/m ± 3 μm/m	± 5 μm/m ± 3 μm/m	± 5 μm/m ± 3 μm/m
Maximum vibration	10 g without mounting plate
Maximum shock	30 g (11 ms) IEC 60068-2-27
Maximum acceleration	10 g in the measuring direction
Required moving force	< 4 N
Operating temperature	0 ºC … 50 ºC
Storage temperature	-20 ºC ... 70 ºC
Weight	0,20 kg + 0,50 kg/m
Relative humidity	20 … 80%
Protection	IP 53 (standard) IP 64 (DIN 40050) using pressurized air at 0.8 ± 0.2 bar in linear encoders
Reader	With built-in connector
