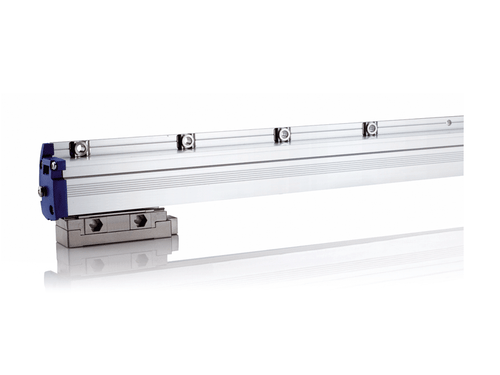

Fagor L Series Incremental Encoders (400mm - 60m)
Contact us for Pricing
- SKU:
- FAGRL
Description
Reviews
Additional Info
Description
Specially designed for high performance environment requiring speed and accuracy.
Their special mounting system guarantees a thermal behavior identical to that of the machine surface the linear encoder is mounted on. This is achieved through floating fixtures at their ends with the base of the machine and by tensioning the etched steel tape. This system eliminates the errors caused by temperature changes and ensures maximum accuracy and repeatability of the linear encoders. The steel tape graduation pitch is 40 μm. Measuring lengths over 4 040 mm require the use of modules.
Lengths
Available in measuring lengths from 440 mm to 60 m in 200 mm increments. Contact Fagor Automation for custom solutions if your application requires longer lengths than 60 meters.
| LX | LP | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Measurement | By means of a 40 μm-pitch stainless steel tape | ||||||||||
| Steel tape thermal expansion coefficient | αtherm: 11 ppm/K aprox. | ||||||||||
| Measuring resolution | 1 μm | Up to 0,1 μm | |||||||||
| Output signals | TTL differential | 1 Vpp | |||||||||
| Incremental signal period | 4 μm | 40 μm | |||||||||
| Limit frequency | 500 KHz | 50 KHz | |||||||||
| Maximum speed | 120 m/min | 120 m/min | |||||||||
| Minimum distance between flanks | 0,5 microseconds | - | |||||||||
| Reference marks I0 | LX and LP: every 50 mm LOX and LOP: distance-coded I0 | ||||||||||
| Maximum cable length | 50 m | 150 m | |||||||||
| Supply voltage | 5V ± 10%, < 150 mA (without load) | ||||||||||
| Accuracy of shaft | ± 5 μm/m | ± 5 μm/m | |||||||||
| Maximum vibration | 10 g (55 … 2000 Hz) IEC 60068-2-6 | ||||||||||
| Maximum shock | 30 g (11 ms) IEC 60068-2-27 | ||||||||||
| Maximum acceleration | 10 g in the measuring direction | ||||||||||
| Required moving force | < 5 N | ||||||||||
| Operating temperature | 0 ºC … 50 ºC | ||||||||||
| Storage temperature | -20 ºC ... 70 ºC | ||||||||||
| Weight | 1,50 kg + 4 kg/m | ||||||||||
| Relative humidity | 20 … 80% | ||||||||||
| Protection | IP 53 (standard) IP 64 (DIN 40050) using pressurized air at 0.8 ± 0.2 bar in linear encoders | ||||||||||
| Reader head | With built-in connector Connection at both ends of the reader head | ||||||||||
Reviews (0)
Be the first to review this product.
Additional Info
- Warranty:
- <p><a href="http://machinetoolproducts.com/content/Fagor%20Linear%20Encoder%20Manuals/Incremental-%20L%20Series/L-Series%20Manual.pdf" target="_blank">L-Series Manual </a></p> <p><a href="http://machinetoolproducts.com/content/Fagor%20Linear%20Encoder%20Manuals/Incremental-%20L%20Series/L-Series%20Extra%20Long%20Manual.pdf" target="_blank">L-Series Extra Long Manual </a></p> <p><a href="http://machinetoolproducts.com/content/Fagor%20Linear%20Encoder%20Manuals/Incremental-%20L%20Series/L-Series%20Single%20Manual.pdf" target="_blank">L-Series Single Manual </a></p> <p><a href="http://machinetoolproducts.com/content/Fagor%20Linear%20Encoder%20Manuals/Incremental-%20L%20Series/L-Series%20Reader%20Head%20Manual.pdf" target="_blank">L-Series Reader Head Manual </a></p>
- SKU:
- FAGRL
- Series:
- L
- Accuracy:
- 5 Micron
- LE_Protocol:
- SSI for Fagor
- LE_Protocol:
- SSI for Siemens
- LE_Protocol:
- Fanuc
- Mitsubishi CNC:
- LE_Protocol:
- Panasonic
- LE_Protocol:
- FeeDat for Fagor
- LE_Protocol:
- Drive-Cliq for Siemens
- LE_Protocol:
- BiSS
