Fagor G2A Series Absolute Encoders (140mm - 3040mm)

Reviews (0)

SKU:: FAGRG2A

Price and SKU will update based on options selected.

Accuracy *

Model *

Length (140mm - 3040mm)

Current stock: 0

Description
Reviews
Additional Info

Description

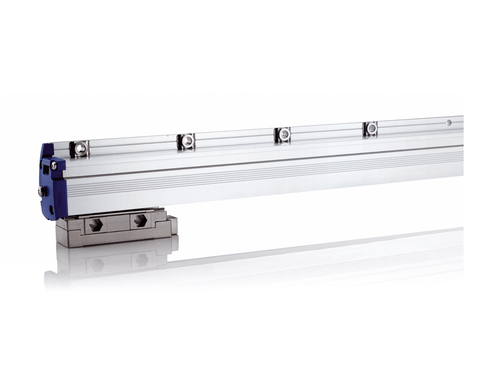

Linear encoder with small reader head, air intake and connector at both ends, with threaded head for different mounting options without the need for nuts.
Especially indicated for high standard environments in terms of speed and vibration. Their special design of the securing points of the linear encoder (TDMS™), drastically reduces the effects and ensures the accuracy and repeatability of the encoders.

Lengths

140 • 240 • 340 • 440 • 540 • 640 • 740 • 840 • 940 • 1.040 • 1.140 • 1.240 • 1.340 • 1.440 • 1.540 • 1.640 • 1.740 • 1.840 • 2.040 • 2.240 • 2.440 • 2.640 • 2.840 • 3.040

Models

G2A: Absolute linear encoders with SSI protocol for FAGOR and others.
G2AS: Absolute linear encoders with SSI protocol for SIEMENS® (Solution Line).
G2AF: Absolute linear encoders with FANUC® (01, 02 and αi) protocol.
G2AM: Absolute linear encoders with MITSUBISHI® protocol.
G2AP: Absolute linear encoders with PANASONIC® (Matsushita) protocol.
G2AD: Absolute linear encoders with FeeDat® protocol for FAGOR and others.
G2AD + EC-PA-DQ: Absolute linear encoders with DRIVE-CLiQ® protocol, for SIEMENS® (Solution Line).
G2AB: Absolute linear encoders with BiSS® protocol.

	G2A	G2AS	G2AF		G2AM		G2AP		G2AD		G2AD+EC-PA-DQ1		G2AB
Measurement	Incremental: By means of a 20 μm-pitch graduated glass tape Absolute: Optical reading of sequential binary code
Glass thermal expansion coefficient	αtherm: 8 ppm/K aprox.
Measuring resolution	0,1 μm		Interface α	Interface αi	0,01 μm	0,05 μm	0,01 μm	0,05 μm	0,01 μm	0,05 μm	0,01 μm	0,05 μm	0,01 μm	0,05 μm
			0,05 μm	0,0125 μm
			0,01 μm	0,0025 μm
Output signals	1 Vpp	-		-		-		-		-		-
Incremental signal period	20 μm		-		-		-		-		-		-
Limit frequency	< 100 KHz para 1 Vpp		-		-		-		-		-		-
Maximum cable length	75m (*)	100 m	30 m		30 m		30 m		100 m		30 m		30m (*)
Supply voltage	5 V ± 10%, <250 mA (without load)
Accuracy	± 5 μm/m ± 3 μm/m
Maximum speed	180 m/min
Maximum vibration	200 m/s² (55 ... 2000 Hz) IEC 60068-2-6
Maximum shock	300m/s² (11 ms) IEC 60068-2-27
Maximum acceleration	100m/s² en la dirección de medida
Required moving force	< 5 N
Operating temperature	0 ºC … 50 ºC
Operating temperature	-20 ºC ... 70 ºC
Weight	0,25 kg + 2,25 kg/m
Relative humidity	20 … 80%
Protection	IP 53 (standard) P 64 (DIN 40050) using pressurized air at 0.8±0.2 bar in linear encoders
Reader head	With built-in connector Connection at both ends of the reader head
