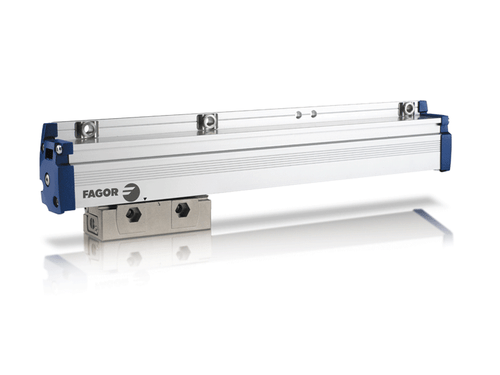

Fagor G Series Incremental Encoders (140mm - 3040mm)

Reviews (0)

SKU:: FAGRG

Description
Reviews
Additional Info

Specially designed for high performance environment requiring speed and accuracy.
The TDMS™ mounting system ensures greater accuracy, higher repeatability and ability to withstand vibrations without compromising machine performance.

Lengths

140 • 240 • 340 • 440 • 540 • 640 • 740 • 840 • 940 • 1 040 • 1 140 • 1 240 • 1 340 • 1 440 • 1 540 • 1 640 • 1 740 • 1 840 • 2 040 • 2 240 • 2 440 • 2 640 • 2 840 • 3 040

	GX	GY	GW	GZ	GP
Measurement	By means of a 20 μm-pitch graduated glass
Glass thermal expansion coefficient	αtherm: 8 ppm/K aprox.
Measuring resolution	1 μm	0,5 μm	0,1 μm	0,05 μm	Hasta 0,1 μm
Output signals	TTL differential	TTL differential	TTL differential	TTL differential	1 Vpp
Incremental signal period	4 μm	2 μm	0,4 μm	0,2 μm	20 μm
Limit frequency	500 KHz	1 MHz	1,5 MHz	500 KHz	100 KHz
Maximum speed	120 m/min	120 m/min	36 m/min	6 m/min (*)	120 m/min
Minimum distance between flanks	0,5 microseconds	0,25 microseconds	0,1 microseconds	0,3 microseconds	-
Reference marks I0	GX, GY, GW, GZ y GP: every 50 mm GOX, GOY, GOW, GOZ y GOP: distance-coded I0 GSX, GSY, GSW, GSZ y GSP: selectable I0
Maximum cable length	50 m	50 m	50 m	50 m	150 m
Supply voltage	5 V ± 10%, < 150 mA (without load)
Accuracy	± 5 μm/m ± 3 μm/m	± 5 μm/m ± 3 μm/m	± 5 μm/m ± 3 μm/m	± 5 μm/m ± 3 μm/m	± 5 μm/m ± 3 μm/m
Maximum vibration	20 g (55 … 2000 Hz) IEC 60068-2-6
Maximum shock	30 g (11 ms) IEC 60068-2-27
Maximum acceleration	10 g in the measuring direction
Required moving force	< 5 N
Operating temperature	0 ºC … 50 ºC
Storage temperature	-20 ºC ... 70 ºC
Weight	0,25 kg + 2,25 kg/m
Relative humidity	20 … 80%
Protection	IP 53 (standard) IP 64 (DIN 40050) using pressurized air at 0.8 ± 0.2 bar in linear encoders
Reader	With built-in connector Connection at both ends of the reader head
