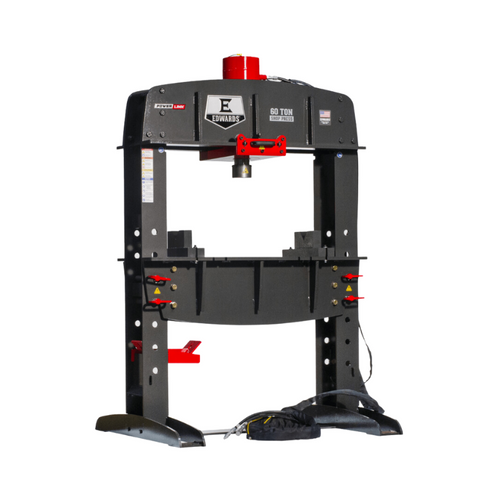

Edwards -60 TON SHOP PRESS WITH PLC AND PORTABLE POWER UNIT 230V, 3PH, ED9-HAT8070

$28,133.79 $23,169.00

Reviews (0)

SKU:: EDWS-ED9-HAT8070

Description
Reviews
Additional Info

Details

This 60 Ton Shop Press includes a Programmable Logic Control (PLC) to maximize your efficiency with shorter cycle times - over a 50% time savings. With a large work table area, this Shop Press accepts both standard and custom tooling to press bearings, bend metal or straighten a part. The rolling cylinder, open-sided design, and electric foot pedal make this machine simple to use. This Shop Press package includes a Portable Power Unit and is ready to PLUG IN & POWER UP.

Features

20' quick-connect hoses for simple "plug & play" operation

Accepts a variety of standard and custom tooling

Electric foot pedal with integrated jog control

Hydraulic-assist adjustable work table heights to maximize operator safety includes lift chains and bracket

Magnetic PLC control box mounts anywhere on the shop press for user performance and comfort

Open-sided design allows longer material to pass through the frame

Programmable Logic Control (PLC) allows operators to create repeatable actions, improving efficiency

Requires an Edwards Ironworker with PowerLink System or a Portable Power Unit to operate (included)

Rolling cylinder provides maximum adaptability

Specifications

Stock Number	ED9-HAT8070
Gross Weight (Lbs)	2300
Minimum Ram Speed (In./Sec)	.330
Minimum Return Speed (In./Sec)	.456
Model Number	HAT8070
Net Weight (Lbs.)	2300
Product Dimensions (In.)	48 x 54 x 86
Prop 65	Cancer and Reproductive Harm
Rating (Tons)	60
Stroke (In.)	12-1/4
Weight (Lbs.)	2300
Work Table (In.)	39-1/4 x 42
