3-Axis Fagor 8055i CNC Kit for Knee Mill (With Mechanical Hardware)

$19,065.00
SKU:
FAGR8055IKMWHW

Call for Lead Time

Current stock: 0
Description

Description

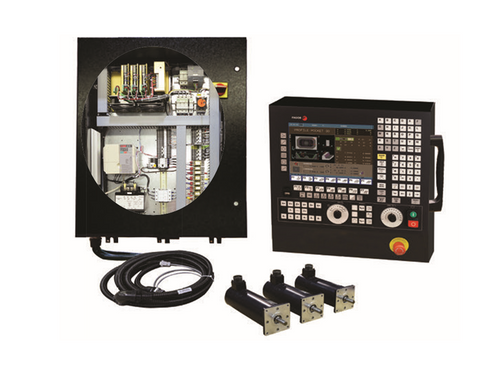

This 3-Axis Fagor 8055i FL MC TKP CNC Kit for Knee Millsis a pre-engineered CNC-Servo System. The CNC is integrated into a functional machine tool pendant and the Servo System is engineered into an electrical cabinet. The two systems are integrated together to provide a working Turnkey System ready for installation. All interconnected wiring is provided, including the motor power cables, encoder cables as well as servo motors. Each system is pre-wired and configured for your specific machine application by our technicians and is fully functional upon delivery. All of Fagor Turnkey Packages are custom-made.

Various options are available dependent upon your specific machine needs that include AC Brushless Motors, Linear Encoders and much more.

Features

- G-Code/ Conversational Programming

- Alphanumeric keyboard

- Numerous Canned Cycle Programs

- 2-enclosure package (LCD screen for operator/ small electrical cabinet for

- Servo amplifiers and I/O interface).

- Open Architecture for customization

- Tool path and Solid graphic simulation

- (3) 31 in.lb. Motors and drives.

- Flash memory (1MB ram/ 512MB CF)

- Emergency Button

- 16 inputs / 8 outputs

- X & Y motor mounting hardware

- X & Y Ballscrews (12”,16”,42”,48”,49”50”,52”,54”)

- Z axis quill assemblies for 3HP or 5HP mill heads

2 Year Warranty

Specifications

Number of Axes 3
CNC User Memory 1 MB / 512MB CF
Display Size 10.4" Color LCD
Data Transfer RS232, USB, Ethernet (Option)
Number of Digital I/O 16IN/8OUT
Feed Motor, Max. Speed 3,000 RPM
Continuous Torque 3.5Nm
System Input Voltage 220V-240V 3-Phase


Options:

Flat hand wheel: $268.00

Ethernet: (TCP-IP): $499.00

X&Y scales $920.00

Remote Hand wheel $1,105.00

Remote Start/Stop $194.00

3 PHASETRANSFORMER

500VA 220/110vac $306.00

Reviews

Reviews (0)

Be the first to review this product.
Additional Info

Additional Info

Warranty:
Standard 2 Year
SKU:
FAGR8055IKMWHW
Availability:
Call for Lead Time
Shipping:
Calculated at Checkout
Mfr Part #:
cnc_Number of Axes:
3
cnc_Control Mfr:
Fagor
cnc_Continuous Torque (Nm):
3.5
cnc_Package Type:
With Mechanical Hardware
cnc_Machine Type:
Knee Mill
