3-Axes (Hardware Only) Siemens 808D CNC Kit for Milling with Siemens Servo Motors & Drives

MTP #:
SIES808BM3HDWR

Other Details

Mfr Part #:
-
cnc_Number of Axes:
3
cnc_Control Mfr:
Siemens
cnc_Motor-Drive Mfr:
Siemens
cnc_Continuous Torque (Nm):
4
cnc_Continuous Torque (Nm):
6
cnc_Continuous Torque (Nm):
7.7
cnc_Continuous Torque (Nm):
10
cnc_Package Type:
Hardware Only
cnc_Machine Type:
Mill
cnc_Machine Type:
Router
cnc_Interface to Drive:
Pulse/Direction
$9,506.29
Lead Time:
Call for Lead Time
Shipping:
Calculated at checkout
Quantity:
Size chart

Choose Your Options

or View Details
Request Quote

Need Some Advice?Speak to one of our gearheads

Product Description

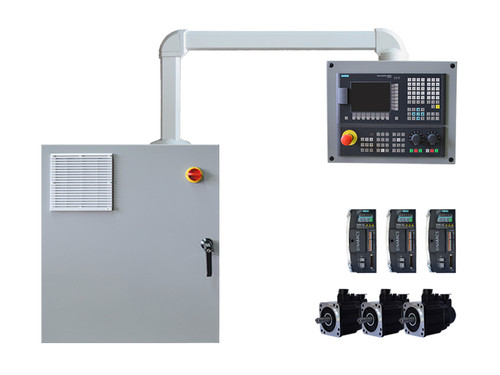

This hardware only Siemens 808D CNC Kit is for a basic 3-axes milling machine. It comes with all Siemens components, including: CNC Display/Control (PPU), Machine Control Panel (MCP), and (3) Drives & Servo Motors with Cable Sets. Motors are rated for 4,6,7.7,or 10Nm of continuous torque. One motor comes with a brake, which is typically used for the Y-Axis on a horizontal machine, or Z-Axis on a vertical machine. This kit also includes MTP Starter Prints, PLC Code, and Commissioning Manual.

This control is perfect for 3-Axis Knee Mills, Vertical Machining Centers, and Routers. The control system is suitable for any machine that has 3 interpolating axes. We recommend this hardware only package for individuals with some level of integration experience. For a more turn-key solution take a look at our Pre-Built Siemens CNC Kits

For more information download the Siemens 808D CNC System Brochure

Maximum Precision and Accuracy

Siemens SINUMERIK 808D offers a calculation accuracy in the nanometer range – far beyond what even a high-end machine tool can achieve. It also feature an intelligent jerk limitation function. This bellprofile acceleration characteristic not only guarantees smooth path behavior, but also reduces the stress on the mechanical system of the machine. As a result, SINUMERIK 808D guarantees maximum workpiece precision.

Technology Cycles for Milling

When it comes to drilling and milling operations, SINUMERIK 808D is a top performer. Boring, centering, drilling, thread milling, pocket machining are no problem! There is even a machine cycle to support parameter input for high-speed mold & die applications.

Operator Friendly CNC Programming

Siemens SINUMERIK 808D offers the common ISO code programming language. This allows operators familiar with other ISO-based CNC systems to quickly make a transition to SINUMERIK 808D. In addition to the standard G codes, such as G01, G02, canned cycles like G81 or G74 are also available. If an operator requires more technological features, the standard ISO codes can be mixed with high-level SINUMERIK CNC commands.

PC-Style File Handling

With SINUMERIK 808D part programs in a linear memory and names in the form of cryptic numbers are thing of the past. Part programs can be allocated meaningful names and the CNC memory can be easily structured by using sub-folders — just the same as for a PC.



Specifications

Number of Axes 3 Interpolating Axes + 1 Spindle
CNC User Memory 1.25 MB
Display Size 7.5"
Data Transfer RS232, USB
Number of Digital I/O 24IN/16OUT (expandable).
Feed Motor, Max. Speed 2,000 RPM
Continuous Torque 4,6,7.7,10Nm
Drive Overload 200%
Incremental Encoder 2500 ppr
Interface to Drive Pulse / Direction
Degree of Protection IP54
System Input Voltage 220V-240V 3-Phase (60 Hz)

Additional Information

Programming & Operation Manuals

Setup & Maintenance Manuals

Contact Us For More Kit Options

We offer tons of package configurations for the Siemens 808D CNC System. If you have any questions about the 808D control or your specific application, please contact us. We are here to help in any way that we can.
