2-Axes Lathe CNC Retrofit Kit, Siemens 808D, Console Config.

$17,036.33 $13,629.06
SKU:
SIES808B-L2-C

Call for Lead Time

Current stock: 0
Description

Description

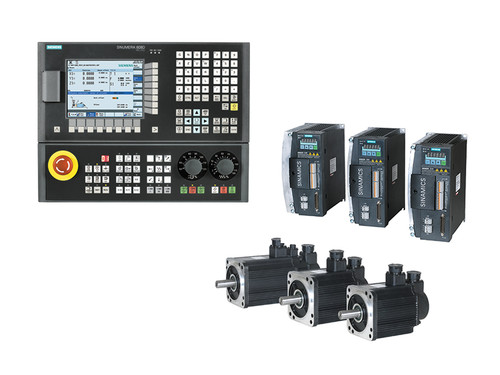

This Pre-Built Siemens 808D CNC Kit is for a basic lathe retrofit application. Kit components include: Siemens CNC Display/Control (PPU), Machine Control Panel (MCP), (2) Siemens Drives & Servo Motors with cable sets, console type enclosure, control components, (2) power supplies, control transformer, output and safety relays, lockable rotary disconnect, resettable breakers for circuit protection, multi-cable thru gland, and MPG pendant with handwheel. MTP Starter Prints, PLC Code, and MTP Commissioning Manual also come with this kit.

Our CNC Kits are some of the easiest to install and configure in the industry. Mount the unit, set a few parameters, and you are ready to go. Setup time typically takes 2-3 hours after hardware is mounted on the machine. PLC code is pre-written and will work for most basic milling machine applications. We have also included a specific User POU, where additional PLC code can be written for machine specific applications, like a tool changer. If you are not proficient in ladder, or simply don't have the time to commission the system for your specific application, ask about our Integration Services. We are happy to setup the machine ourselves or recommend one of our trusted Integration Partners.

The Siemens 808D CNC for turning is perfect for vertical and horizontal lathes. The control system is suitable for any machine that has up to 3 interpolating axes.

For more information download the Siemens 808D CNC System Brochure

Maximum Precision and Accuracy

Siemens SINUMERIK 808D offers a calculation accuracy in the nanometer range – far beyond what even a high-end machine tool can achieve. It also feature an intelligent jerk limitation function. This bellprofile acceleration characteristic not only guarantees smooth path behavior, but also reduces the stress on the mechanical system of the machine. As a result, SINUMERIK 808D guarantees maximum workpiece precision.

Technology Cycles for Turning

For turning a wealth of functions are available, such as machining standard contours, grooves and thread undercuts, cutting of various thread types — and even a powerful contour stock removal cycle. These cycles allow the optimum performance to be obtained from turning machines with just a few parameter settings.

Operator Friendly CNC Programming

Siemens SINUMERIK 808D offers the common ISO code programming language. This allows operators familiar with other ISO-based CNC systems to quickly make a transition to SINUMERIK 808D. In addition to the standard G codes, such as G01, G02, canned cycles like G81 or G74 are also available. If an operator requires more technological features, the standard ISO codes can be mixed with high-level SINUMERIK CNC commands.

PC-Style File Handling

With SINUMERIK 808D part programs in a linear memory and names in the form of cryptic numbers are thing of the past. Part programs can be allocated meaningful names and the CNC memory can be easily structured by using sub-folders — just the same as for a PC.

Notes:

*Pricing varies based on servo size and additional options chosen. Please contact us to receive a free quote on a retrofit kit for your application.

*Siemens 808D ADVANCED Kits are also available. Call for pricing.

Specifications

Number of Axes 2
CNC User Memory 1.25 MB
Display Size 7.5"
Data Transfer RS232, USB
Number of Digital I/O 24IN/16OUT (expandable).
Feed Motor, Max. Speed 2,000 RPM
Continuous Torque up to 10Nm (without gearboxes)
Drive Overload 200%
Incremental Encoder 2500 ppr
Interface to Drive Pulse / Direction
Degree of Protection IP54
System Input Voltage 220V-240V 3-Phase (60 Hz)

Additional Information

Setup & Maintenance Manuals

Contact Us For More Kit Options

We offer tons of package configurations for the Siemens 808D CNC System. If you have any questions about the 808D control or your specific application, please contact us. We are here to help in any way that we can.
