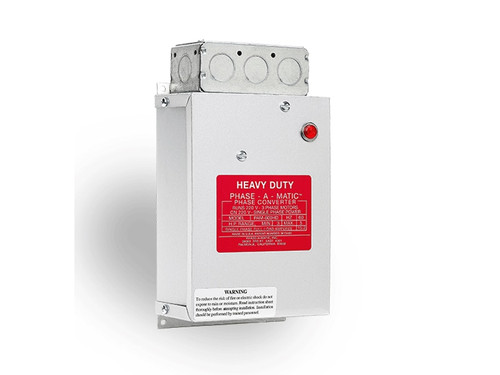

Designed especially for running three-phase 220V Machine Tools and Motors from single-phase 220V power. Runs three-phase motors from a single-phase power at 2/3 rated HP.
Method 1: Reduced HP
Using the PHASE-A-MATIC static converter alone will produce approximately 2/3 normal HP.* This method is inexpensive, the most popular, provides excellent results on most machine tools and for numerous other uses. Motor speed is not changed. Most 2-speed motors, power feeds, coolant pumps, etc. will operate. Motor will instant reverse. There is nothing to change. All switch gear will work normally.
Method 2: Full or close to full HP
Make your own type of ROTARY CONVERTER using the static converter in conjunction with a three-phase motor used as an idler motor can produce full or close to full HP. When running unloaded, the windings of the motor function as a rotary transformer or generator while consuming very little extra power. The idler motor needs to be a minimum of 50% larger than the largest motor that you want to run to accommodate the higher starting current. A good quality, 3600 RPM three-phase wye-wound 220V motor is the best choice. 1800 RPM motors can be used on applications not heavily loaded.
See the "Guidelines for Sizing" sheet in the documentation tab or contact the factory for verification of sizing. All models include a 12 month warranty.
